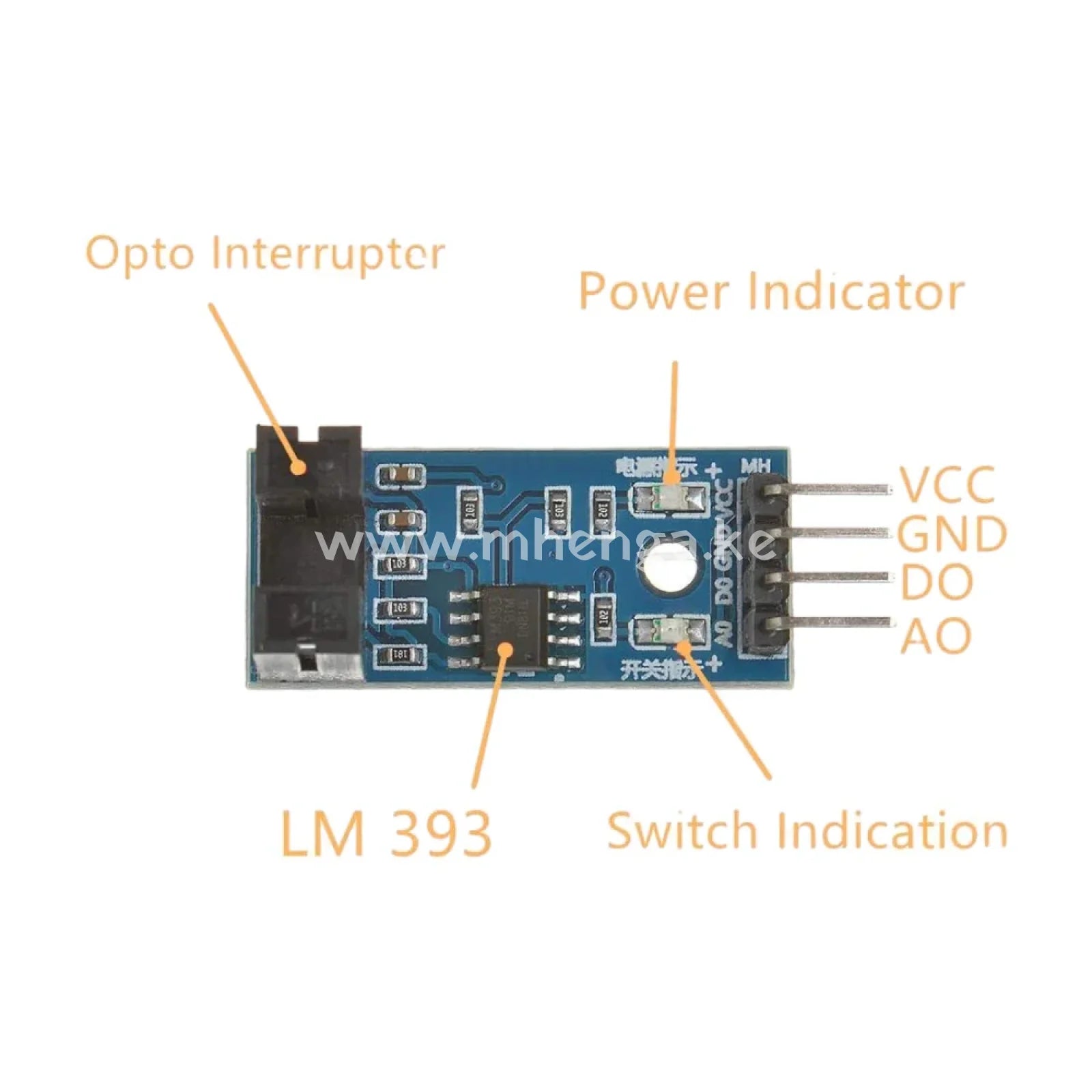

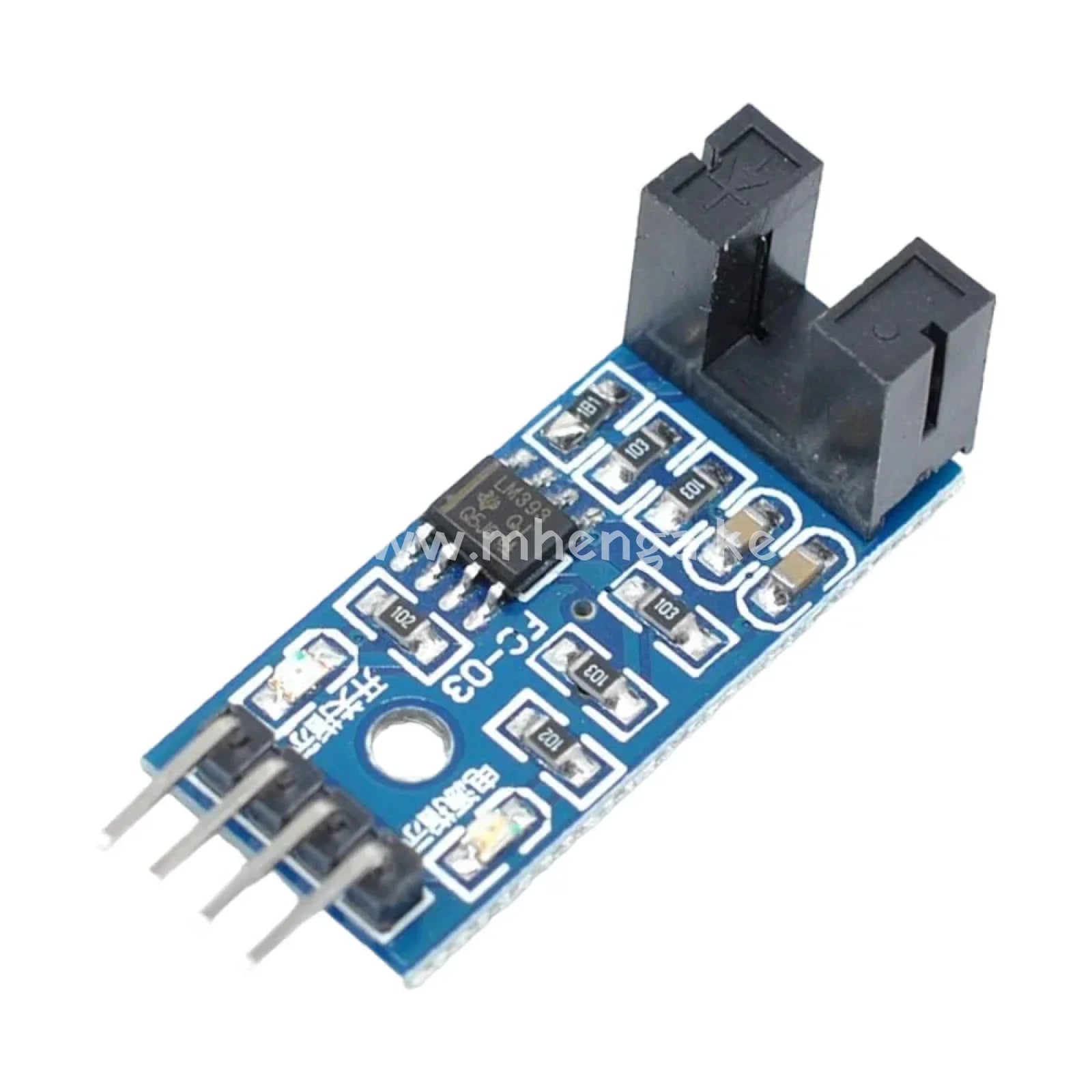

LM393 Chip Motor Measuring Comparator Speed Sensor Module Slot Type IR Optocoupler for MCU Arduino

Product Name : Speed Sensor Module;Working Voltage : DC 3.3-5V Main Chip : LM393;PCB Board Size :...
Vendor: mhenga
Availability: In Stock
KSh199.00
KSh199.00
Please hurry! Only 4 left in stock
Subtotal: KSh199.00
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over Ksh 10,000

Estimated to be delivered within 3 Hours - 24 Hours

Free Returns

Learn More.
LM393 Chip Motor Measuring Comparator Speed Sensor Module Slot Type IR Optocoupler for MCU Arduino

LM393 Chip Motor Measuring Comparator Speed Sensor Module Slot Type IR Optocoupler for MCU Arduino

KSh199.00

LM393 Chip Motor Measuring Comparator Speed Sensor Module Slot Type IR Optocoupler for MCU Arduino

KSh199.00
  • Product Name : Speed Sensor Module;Working Voltage : DC 3.3-5V
  • Main Chip : LM393;PCB Board Size : 33 x 14mm/ 1.3" x 0.55" (L*W)
  • Slotted Width : 5mm/ 0.2";Hole Size : 3mm/ 0.12"
  • Material : Electric Part;Net Weight : 4g

Technical Specifications:


  • Main Chip : LM393
  • Working voltage:3.3 V to 5 V
  • Output form: digital switch output (0 and 1)
  • Output: Covered, output high level; Without shelter, the output low level
  • PCB size: 32 mm x 14 mm/ 1.26″×0.55″
  • Mounting Hole Size : 3mm/ 0.12"
  • Slotted Width : 5mm/ 0.2"
