10/100/1000M SM 20KM fiber optic switch hub Single mode dual fiber media converter
Product Description
Gigabit Fiber Media Converter with 10/100/1000M single mode dual Fiber Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100/1000M UTP interface (TX) and 1000M Fiber interface (FX). The traditional 10/100/1000M Ethernet can be extended to the distance of 100km through Single Optical Fiber link. The performance and quality of the products are excellent because of adopting latest IC from Taiwan. It must be used in couples, because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for end-users to observe the conditions of network. The Series product with reasonable price is especially designed for network end-users. There are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
Â
Specifications
10/100/1000M SM 20KM fiber optic switch hub Single mode dual fiber media converter product specs as below:
|
Specification |
||
|
Product Name |
10/100/1000M Fiber Optic Media Converter |
|
|
Product Model |
SST-MCT-1X9-DF20 | |
|
Connector |
Fiber Port: 1* 1.25Gbps SC/ST/FC Optional |
|
|
RJ45 Port: 1*10/100/1000Mbps, Auto MDI/MDI-X |
||
|
Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) |
|
|
100BASE-TX: Cat5 or later UTP(≤100 meter) |
||
| Â | ||
|
Fiber Media |
Fiber ( Multimode): 50/125, 62.5/125μm(the max distance up to 2km or 5km) |
|
|
Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 100km) |
||
|
Forwarding Mode |
Store-and-Forward |
|
|
MAC Table Size: |
2K |
|
|
Operating standard |
EEE802.3, IEEE802.3u ,IEEE802.3z,IEEE802.3ab,IEEE802.3x |
|
|
Power |
external |
Input:AC 100~240V(default) |
|
Output:DC 5V 1AÂ (default) |
||
|
 |
USB power supply(Optional) |
|
|
Power consumption |
2.5W |
|
|
LED |
Power, Link/Act, TX 100,10,FDX, Link/Act. |
|
|
Working Environment |
Working temperature: -10~55℃ ; |
|
|
Storage temperature: -20~70℃ |
||
|
Relative Humidity: 5%~95 %( no condensation) |
||
|
Installation |
DIN-Rail or Wall mounts,Optional,Default device is not |
|
|

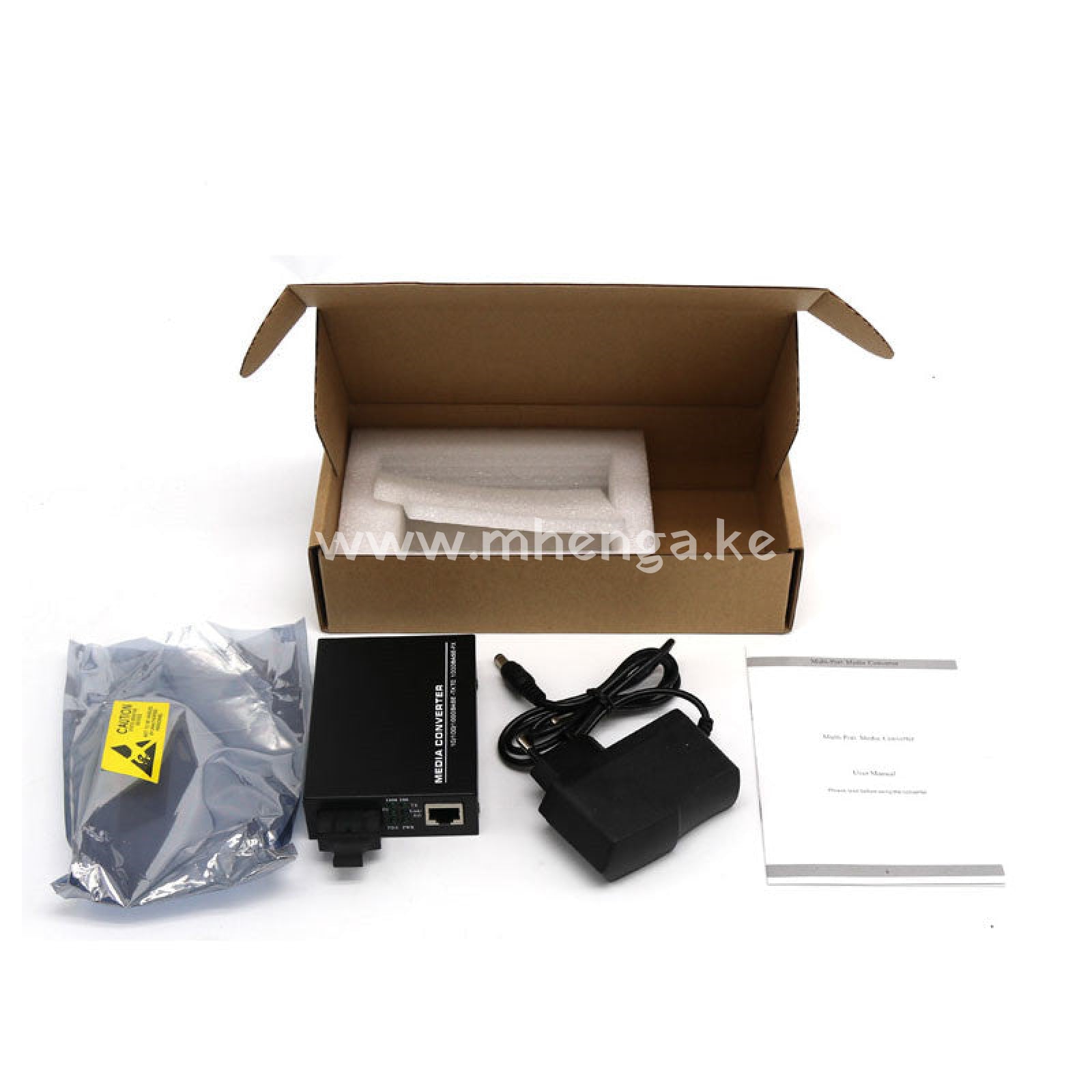

Packing List  |
1× Media Converter |
|
|
1×User Manual/Certificate of quality/Warranty card |
||
|
1×power adapter |
||
|
MTBF |
100,000 hours |
|
|
Weight & Size |
Product Weight: 0.35KG/piece |
|
|
Packing weight: 0.5KG/piece |
||
|
Product size (L×W×H): 94.5*70*26mm |
||
|
Packing size(L×W×H):215*138*60mm/pcs |
||
|
Warranty |
3 years |
|
Â
Â
Product Avantages
  10/100/1000M SM 20KM fiber optic switch hub Single mode dual fiber media converter Product advantages:
- Support the switch between 10/100/1000Base-T and 1000Base-SX/LX
- 1*1.25Gbps full duplex fiber port, 1*10/100/1000M adaptive Ethernet port
- Support 10/100/1000M rate, support MDI/MDI-X adaptive, support full/half duplex adaptive
- Warranty time: 3 years
- Support high performance QoS function on each port
- MAC Table Size: 2K
- Buffer Space: 1Mbit
- Back bandwidth: 4G
- Support 9K bytes Jumbo Packet
- Low time delay, data isolation function
- Each port has the complete LED Indicator light
- Support IEEE802.1d Spanning Tree
- Require no configuration and will instantly operate as soon as you power it up
- Small volume, saving shipping cost
- Low power consumption chip with heat sink built in to ensure long time efficient operation.

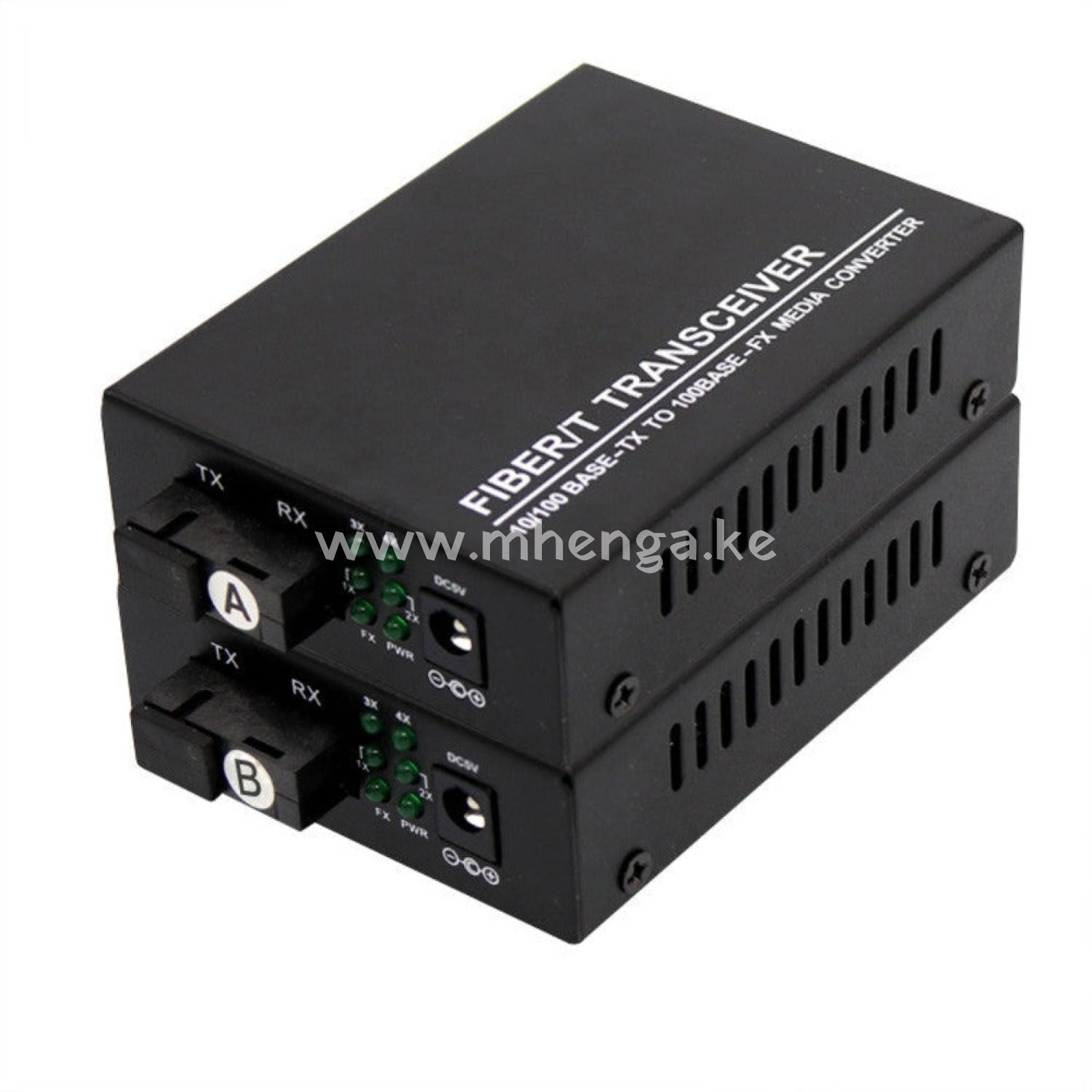

Detailed Images
